WG70 / WG70T
Transform any garden, large or small into a high-performance veranda with our aluminum Winter Garden systems. Whether you crave a fresh ambiance beyond the traditional conservatory or need a sleek, durable canopy, WG70 and its thermally broken counterpart WB70T deliver outstanding style and performance.
Get quote
Premium Features
Hidden drainage
Hidden systems for clean aesthetics and performance.
UV defense
Blocks harmful UV rays to protect interiors.
Storm-ready
Tested to perform in high-wind conditions.
All-weather sealing
Built to resist rain, snow, and the elements.
Built to resist
Built to withstand harsh environments.
Soft-white light
Integrate energy efficient soft-white light to any space for a warm ambience.

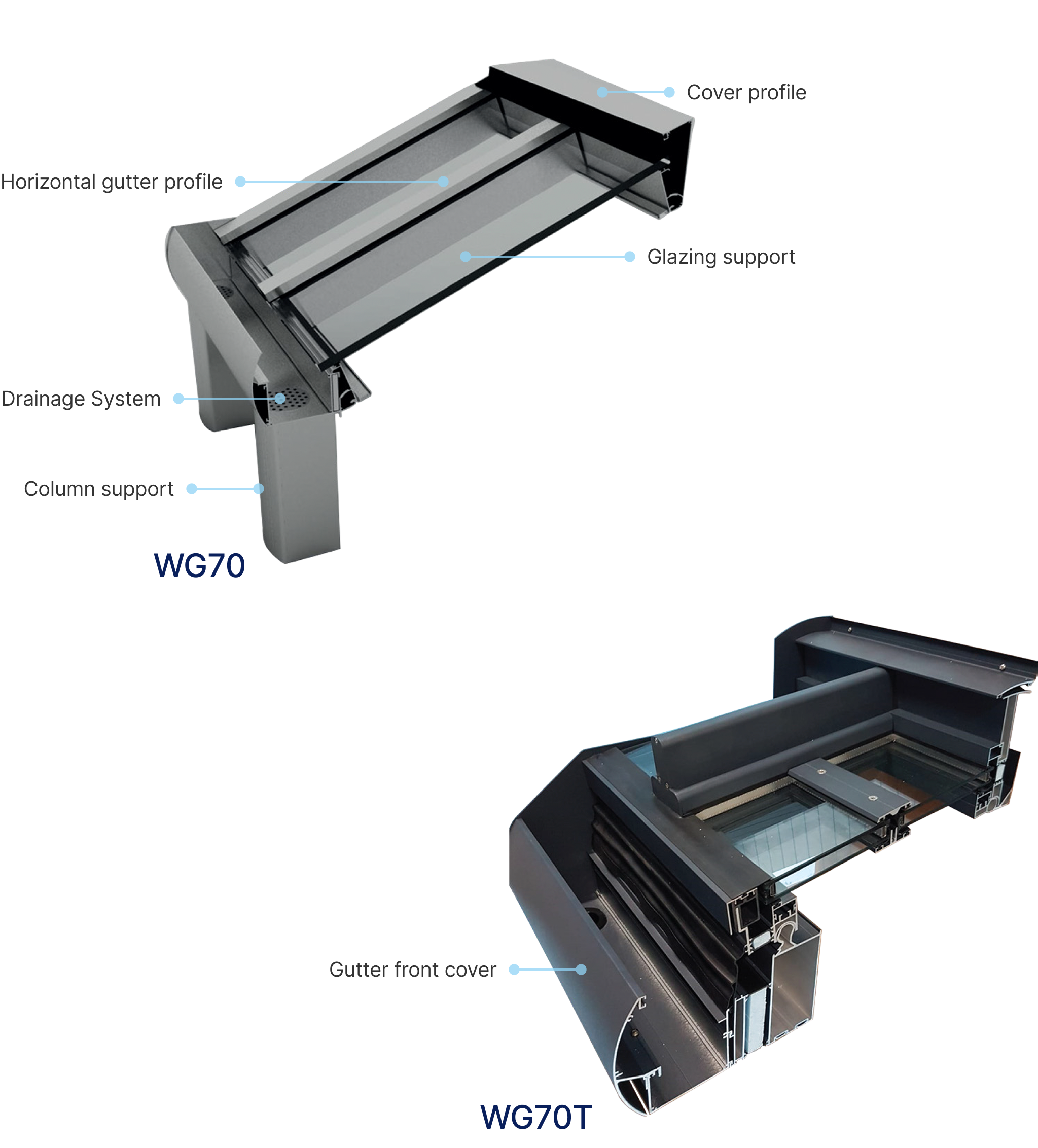

Inside the Frame
Explore the inner structure and key features of WG70 and WG70T.
Technical Specifications
| WG70 | WG70T | |
|---|---|---|
| Pole Profile Width | 4.33 inch | 4.84 inch |
| Gutter Profile Width | 6.93 inch | 4.1 inch |
| Glazing Carrier Profile Width | 2.17 inch | 3.23 - 4.45 inch |
| Profile Wall Thickness | 0.05 – 0.06 in | 0.05 – 0.06 in |
| Max. Glazing Thickness | 0.63 inch | 1.26 inch |
| Max. Glazing Width | 32.28 inch | 32.28 inch |
| Max. Jointless Veranda Width | 177.17 inch | 177.17 inch |
| Max. Veranda Depth | 137.8 inch | 137.8 inch |
| Max. Distance Between Pole Profiles | 177.17 inch | 177.17 inch |
| Max. Veranda Back Height | 118.11 inch | 118.11 inch |
| Max. Veranda Front Height | 98.43 inch | 98.43 inch |
| Min. Thermal Insulation | - | Uf: 1,85 W/(m².K) |

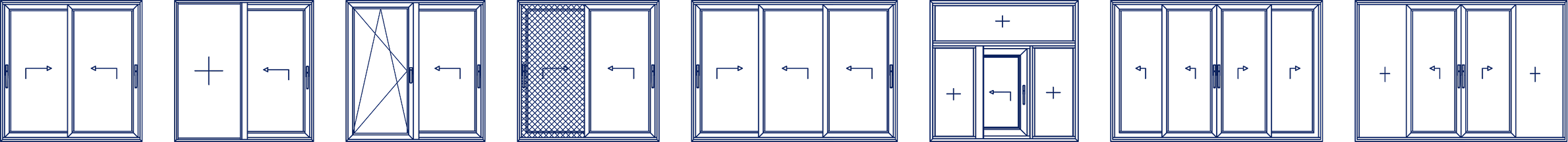

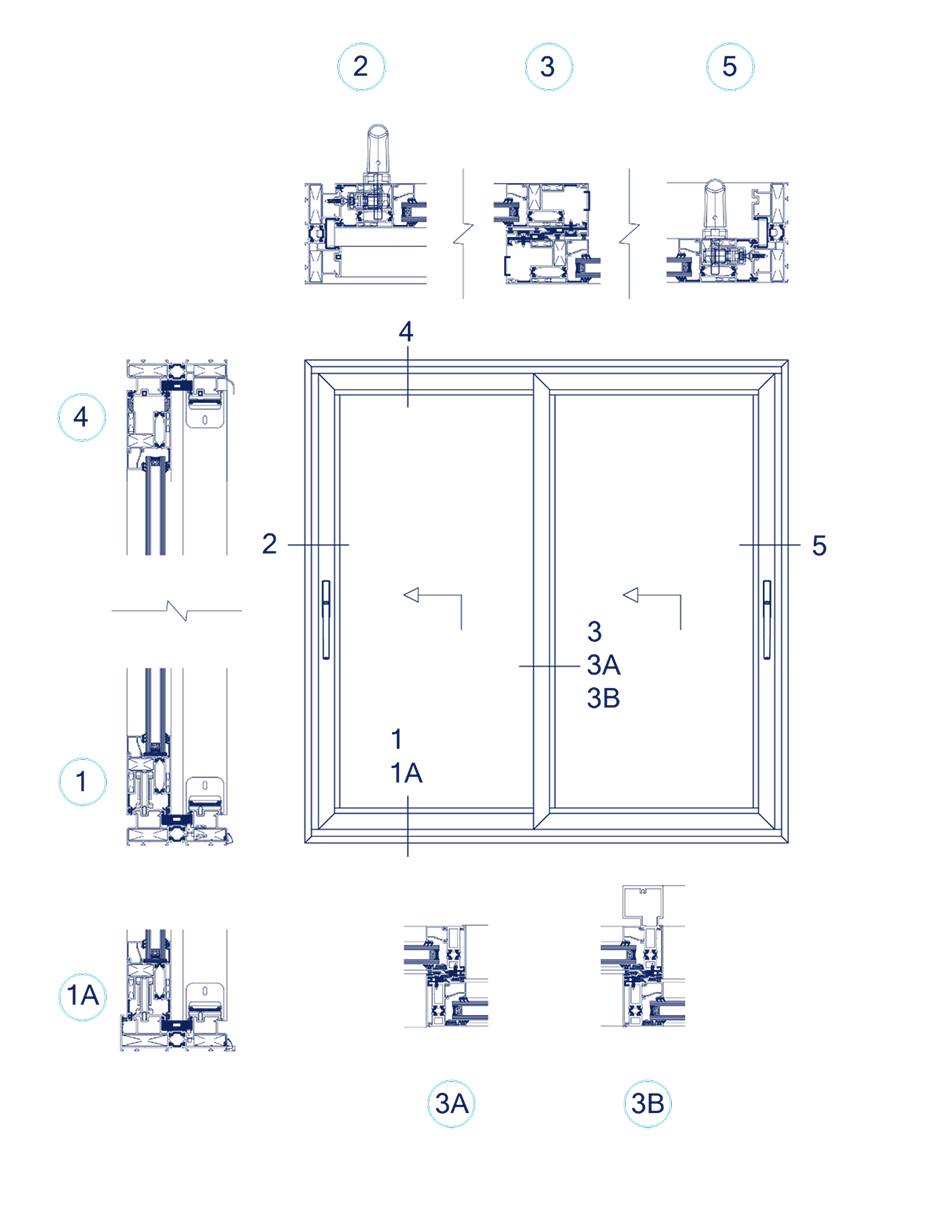

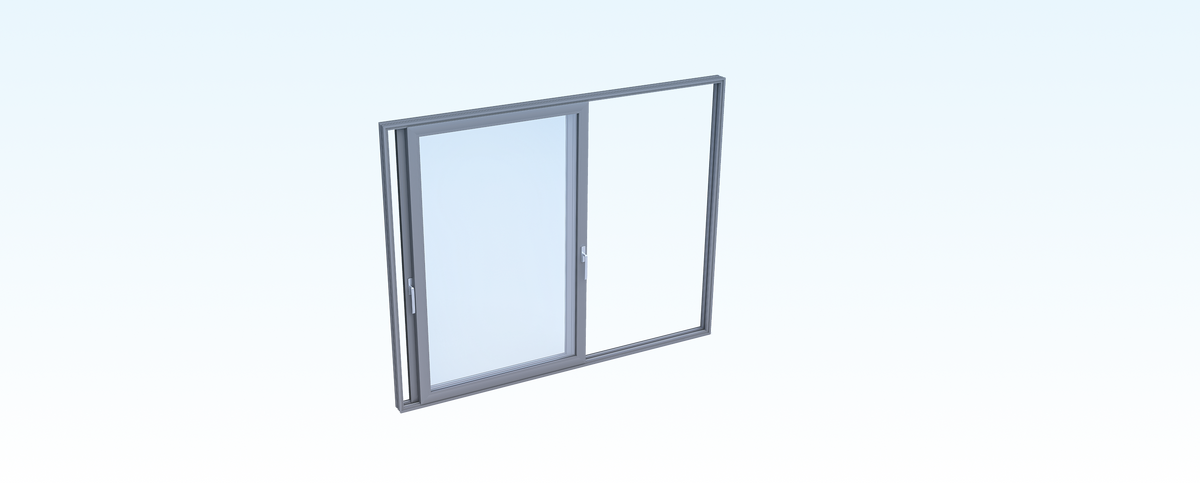

Two operable panels

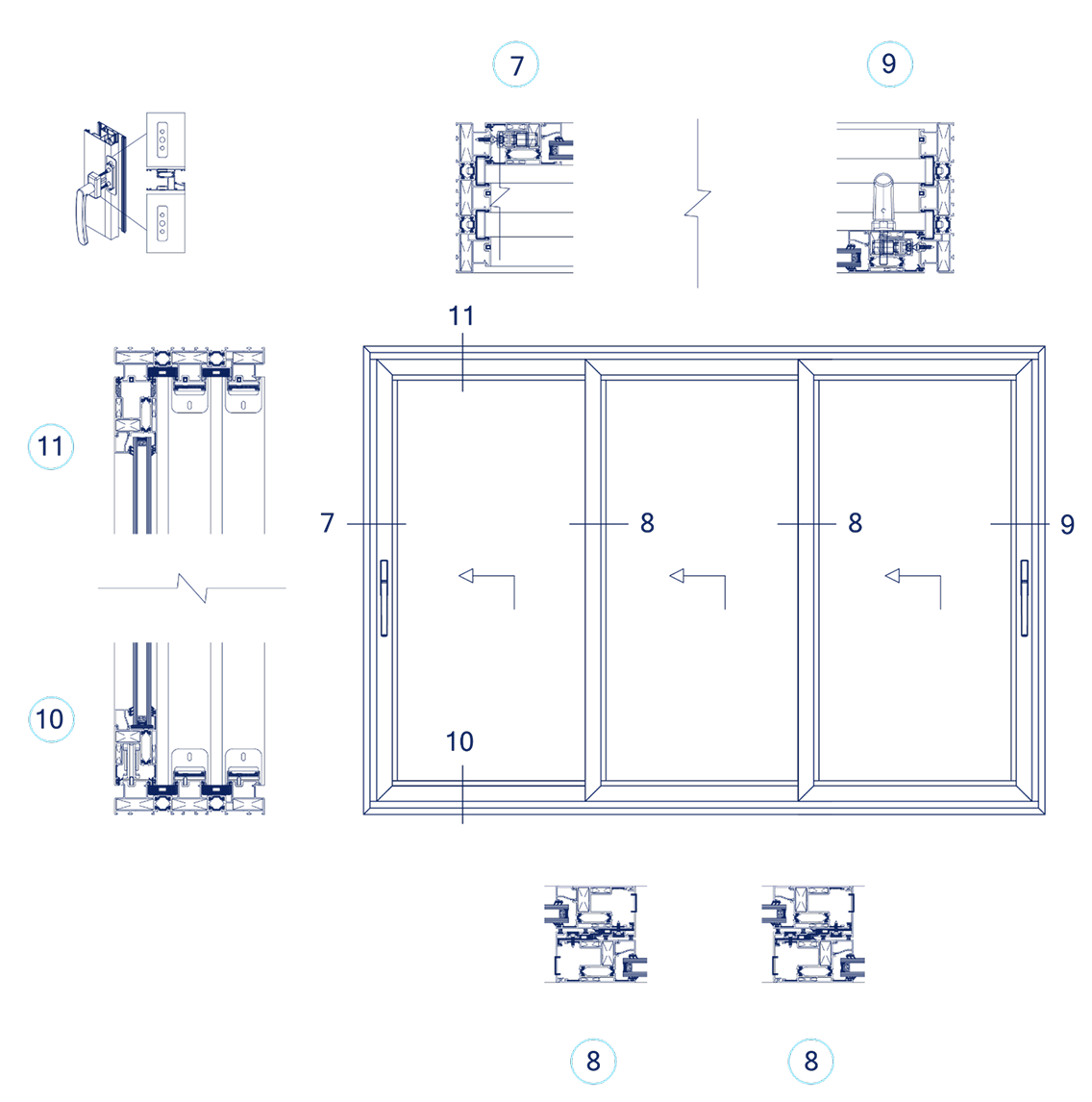

Three operable panels

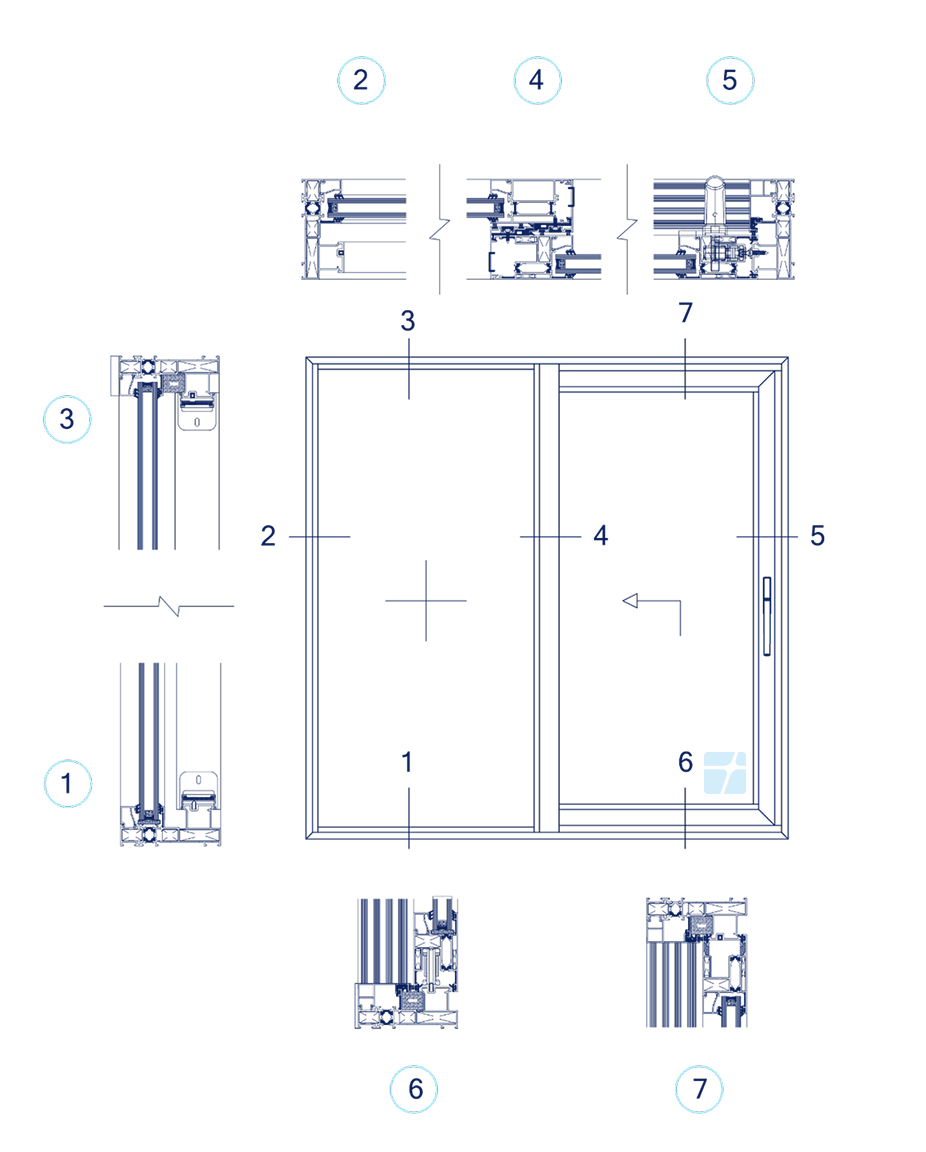

One operable panel / One stationary
Center opening four operable panels
Application Options
- Gutter Reinforcement
- Carrier Reinforcement
- Straight Veranda (Joint - Jointless)
- L Type Veranda
Glass Specs & Configurations
Discover a range of glass types engineered to meet aesthetic, performance, and safety requirements—each tailored to enhance the design and functionality of your project.
Glass Types
Insulation & Energy Efficiency
Premium Finishes & Color Options
Choose from our standard color selection or customize your project with any RAL color or wood grain finishes. Our durable, powder-coated aluminum ensures long-lasting performance, weather resistance, and a flawless aesthetic.
9016
White
9006
Aluminum
9005
Jet black
7021
Black gray
8017
Chocolate brown
9001
Cream
7006
Beige gray
7016
Anthracite
7040
Window gray
9403-205
Maple
9403-205
Golden pine
9403-205
Red mahogany
Powder-coated
Anodized
Custom RAL colors
Wood-grain look
