WD70T
The WD70T Insulated Door and Window System is engineered for high-performance building envelopes, combining robust thermal and acoustic insulation with refined aluminum profiles. Designed to meet the demands of modern architecture, it delivers durability, energy efficiency, and clean, minimalist aesthetics—perfect for projects prioritizing sustainability and design excellence.
Get quote
Premium Features
UV defense
Blocks harmful UV rays to protect interiors.
Noise reduction
Reduces noise for a quieter interior.
All-weather sealing
Built to resist rain, snow, and the elements.
Thermal barrier
Enhanced insulation with reduced heat transfer.
Classic grid design
Classic grid style for a traditional look.
Secure locking
Safety and peace of mind.

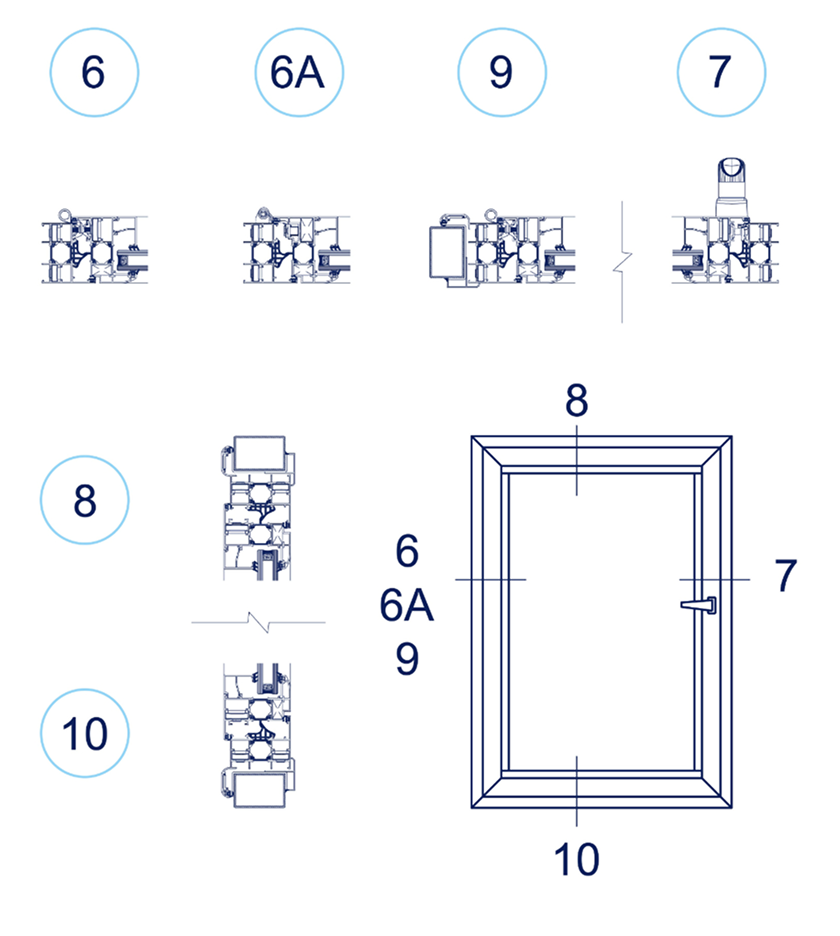

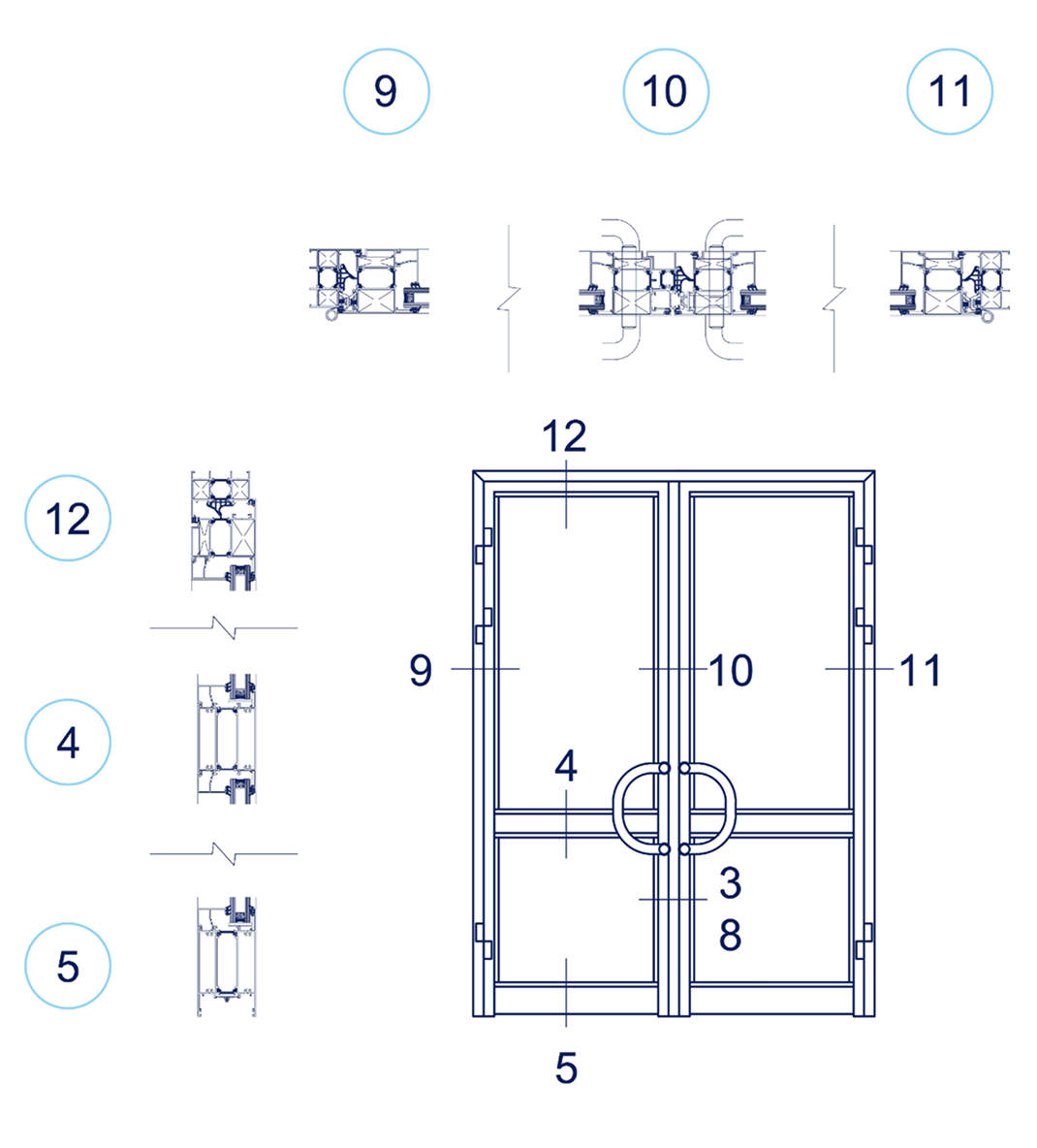

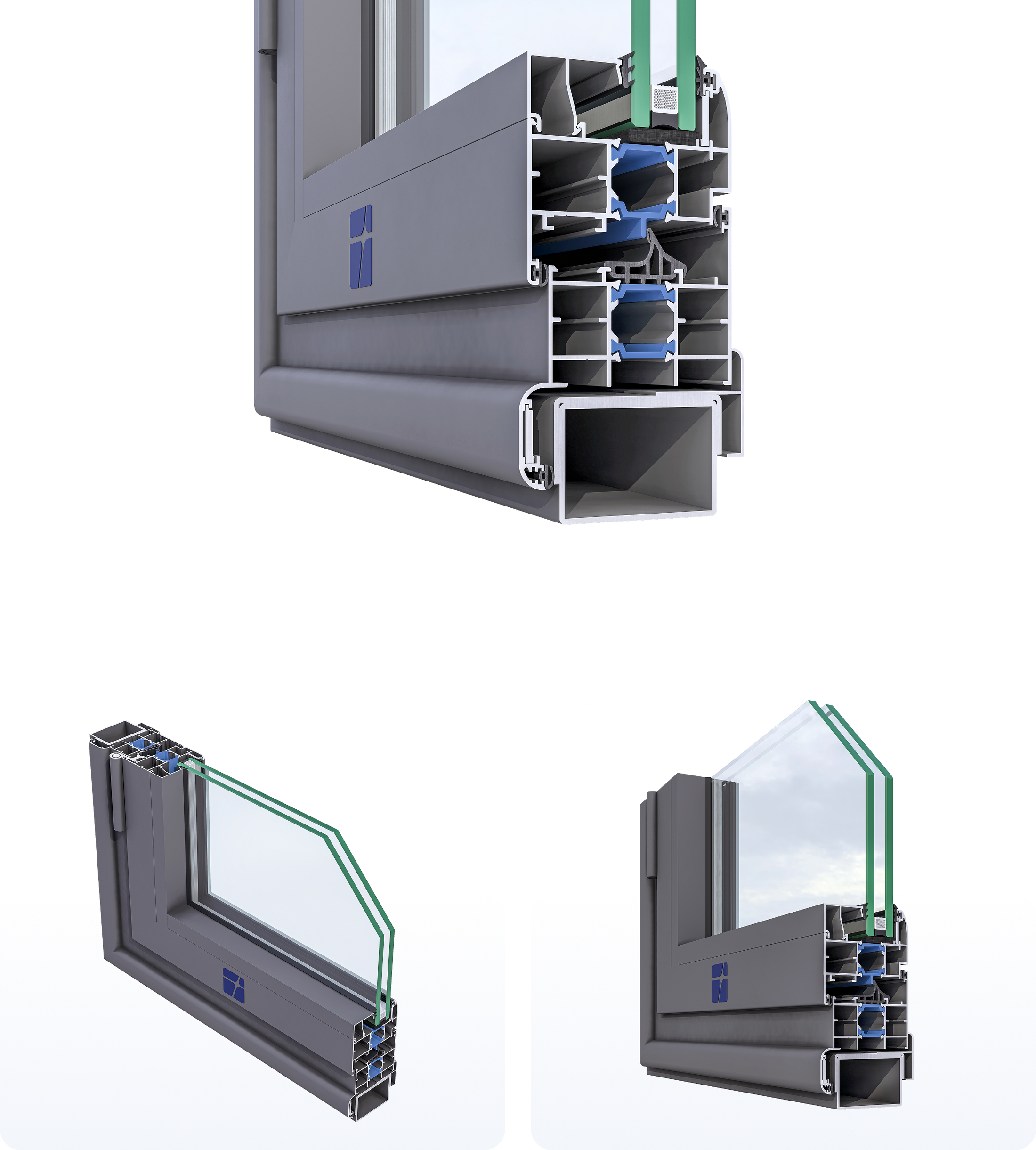

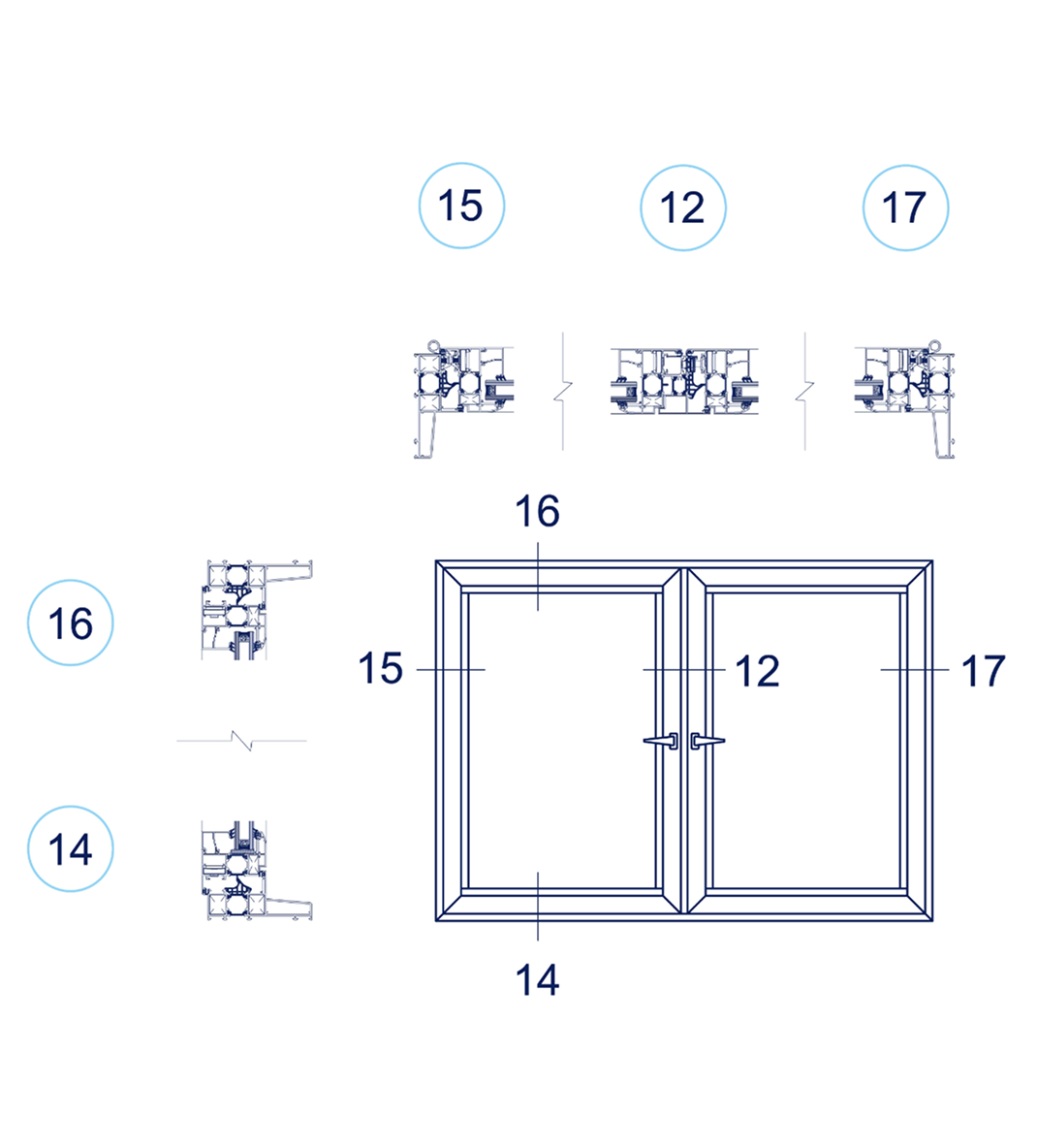

Inside the Frame
Explore the inner structure and key features of WD70T.
Technical Specifications
Frame Width
2.76 - 3.17 inch
Profile Wall Thickness
0.06 - 0.08 inch
Min. Sash Dimensions
14 x 28 inch
Sash Width
3.05 inch
Min. Glazing Thickness
0.63 inch
Max. Sash Dimensions
51 x 110 inch
Thermal Break
0.95 inch
Max. Glazing Thickness
1.77 inch
Max. Sash Weight
286.6 lbs
EN 12152 Air Permeability
Rw (C;Ctr) = 41 (-2,-5) Db
EN 12154 Water Tightness
Class E1200 (1200 Pa)
Min. Thermal Insulation
Uf : 2,04 W/(m².K)
EN 12152 Air Permeability
Class C4 (600 Pa)
EN 13830 Wind Resistance
Class C5 (2000 Pa)

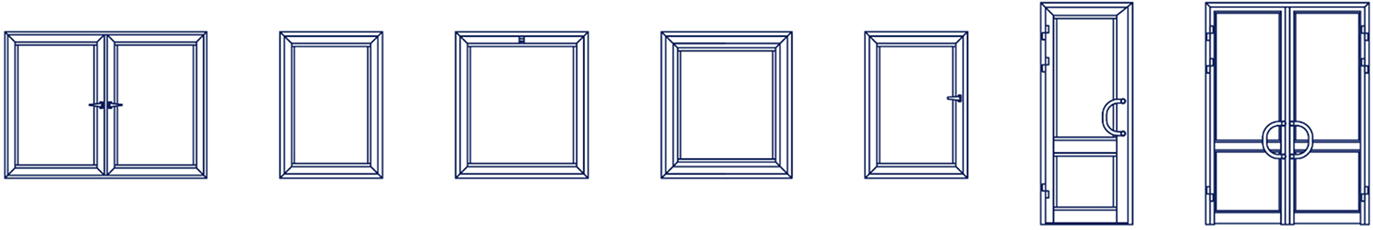

Single door
French door
Window
Window with a fixed panel
Application Options
- Inward Opening Sash
- Tilt and Turn Opening
- Double Sash Opening
- Outward Opening Sash
- Transom Opening
- Pivot Opening
Glass Specs & Configurations
Discover a range of glass types engineered to meet aesthetic, performance, and safety requirements—each tailored to enhance the design and functionality of your project.
Glass Types
Insulation & Energy Efficiency
Premium Finishes
Choose from our standard color selection or customize your project with any RAL color or wood grain finishes. Our durable, powder-coated aluminum ensures long-lasting performance, weather resistance, and a flawless aesthetic.
9016
White
9006
Aluminum
9005
Jet black
7021
Black gray
8017
Chocolate brown
9001
Cream
7006
Beige gray
7016
Anthracite
7040
Window gray
9403-205
Maple
9403-205
Golden pine
9403-205
Red mahogany
Powder-coated
Anodized
Custom RAL colors
Wood-grain
