WD55
The WD55 Door and Window System offers sleek design and robust performance for modern architecture. Its slim aluminum profiles support high-performance glass for superior insulation and soundproofing. Ideal for residential and commercial spaces, WD55 seamlessly blends minimalist aesthetics with advanced engineering.
Get quote
Premium Features
UV defense
Blocks harmful UV rays to protect interiors.
Noise reduction
Reduces noise for a quieter interior.
All-weather sealing
Built to resist rain, snow, and the elements.
Built to resist
Built to withstand harsh environments.
Classic grid design
Classic grid style for a traditional look.
Secure locking
Safety and peace of mind.

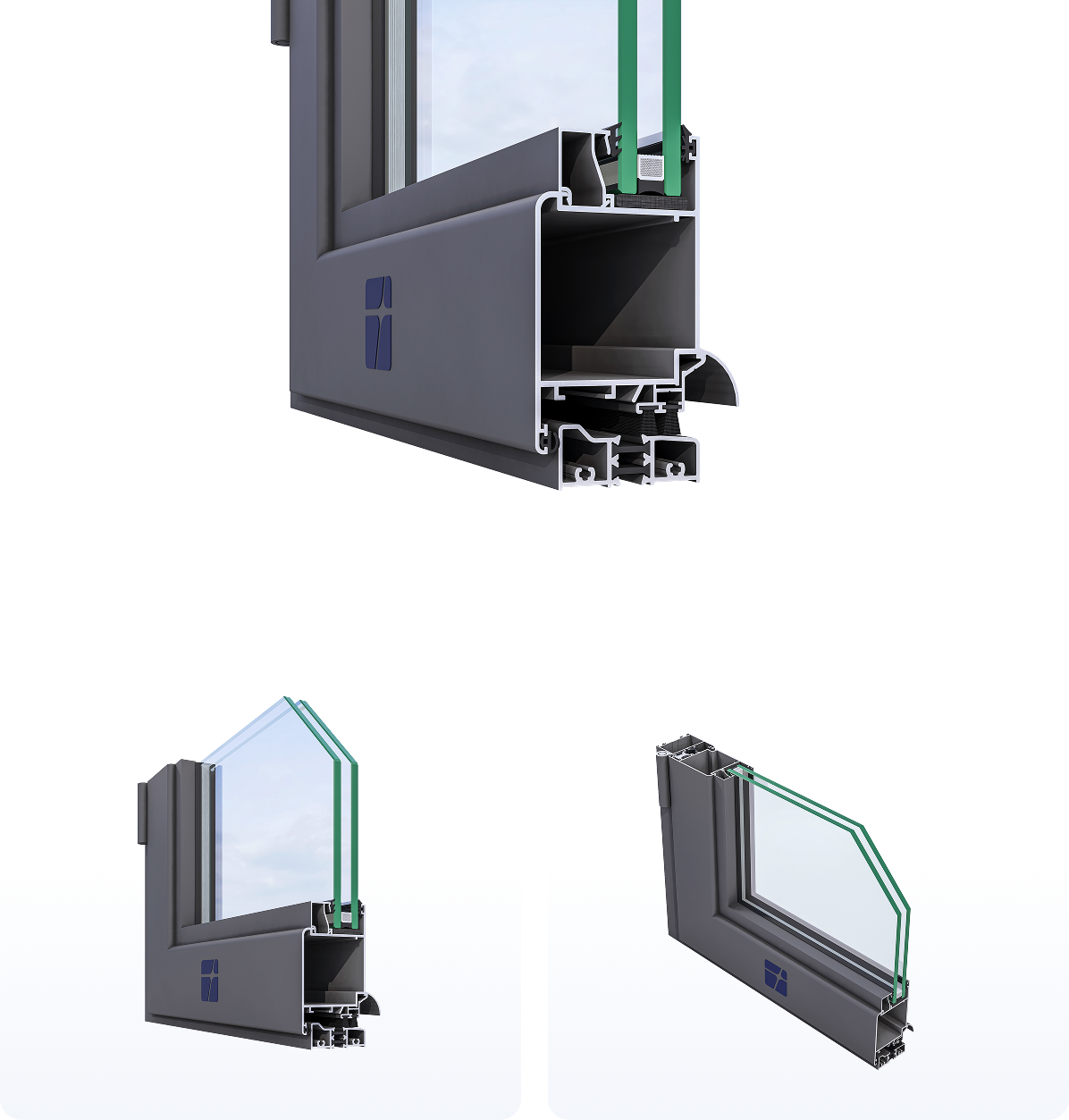

Inside the Frame
Explore the inner structure and key features of WD55.
Technical Specifications
Frame Width
2.17 - 2.36 inch
Profile Wall Thickness
0.05 - 0.08 inch
Min. Sash Dimensions
13.78 - 19.69 inch
Sash Width
2.50 inch
Min. Glazing Thickness
0.16 inch
Max. Sash Dimensions
51.18 - 110.24 inch
Thermal Break
-
Max. Glazing Thickness
1.42 inch
Max. Sash Weight
286.60 lbs
EN 12152 Air Permeability
Class 4 (600 Pa)
EN 13830 Wind Resistance
Class C3 (1200 Pa)
Min. Thermal Insulation
Uw : 6.2 - 6.7 W/(m².K)
EN 12154 Water Tightness
Class 9A (600 Pa)

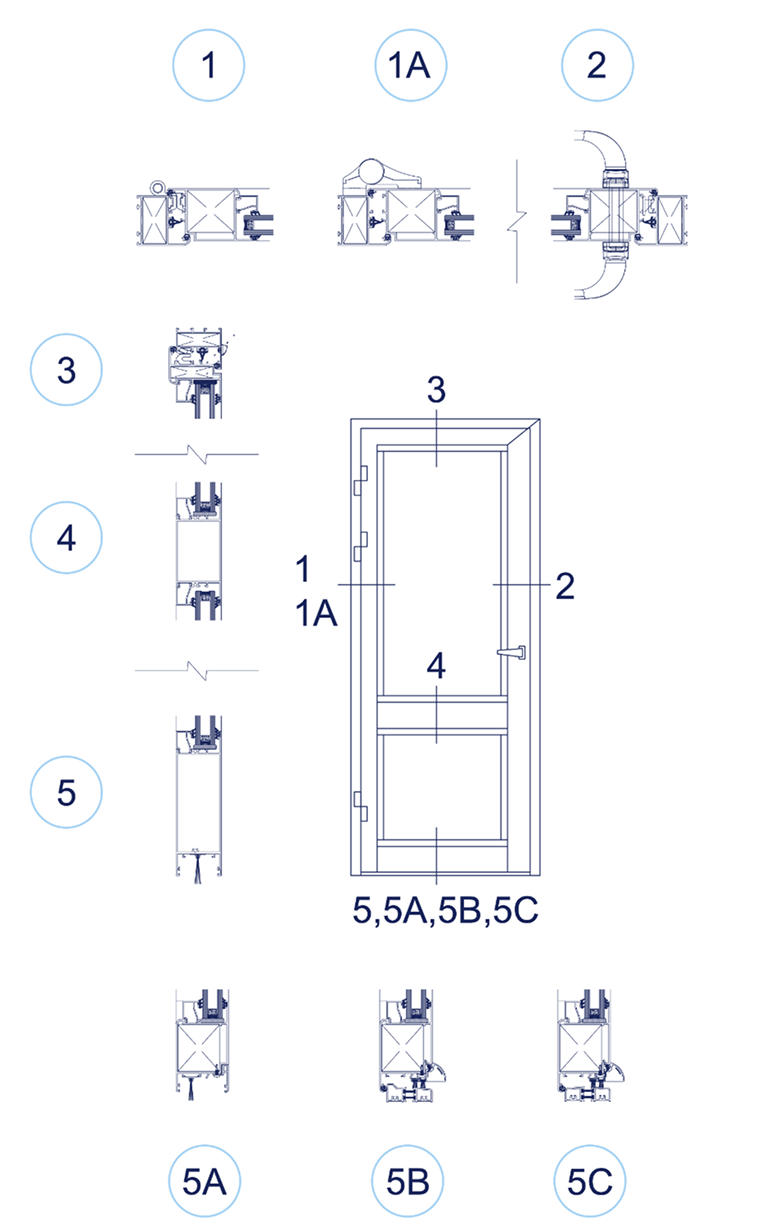

Single door

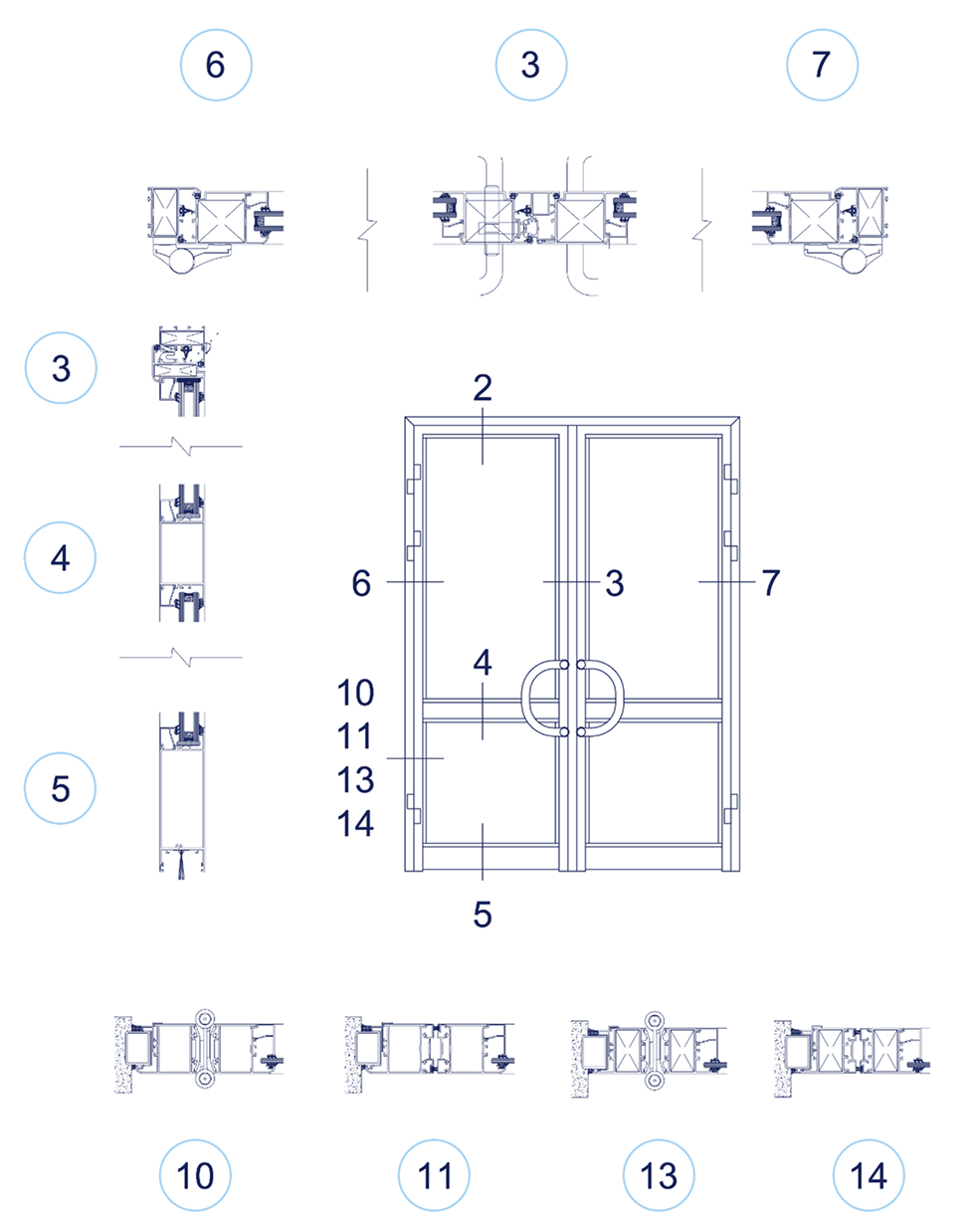

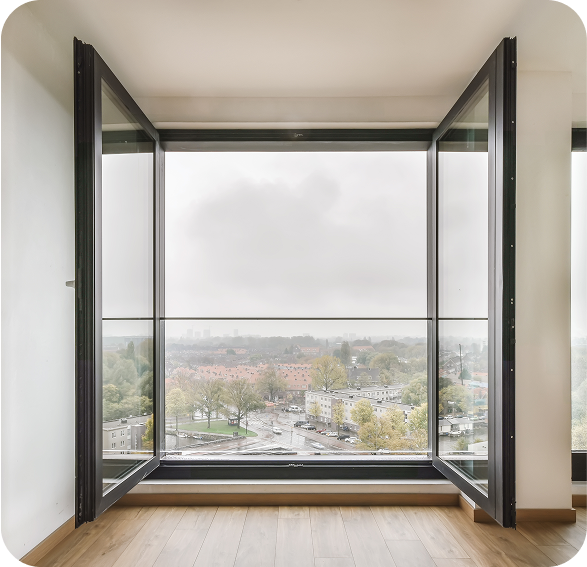

French door

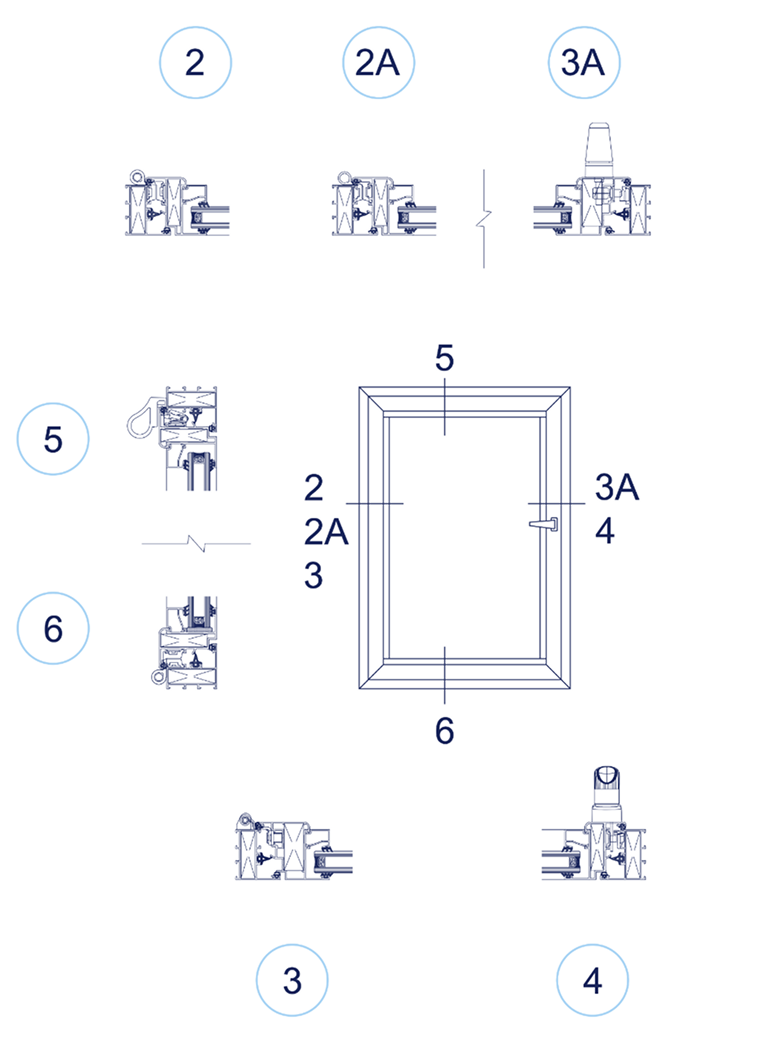

Window

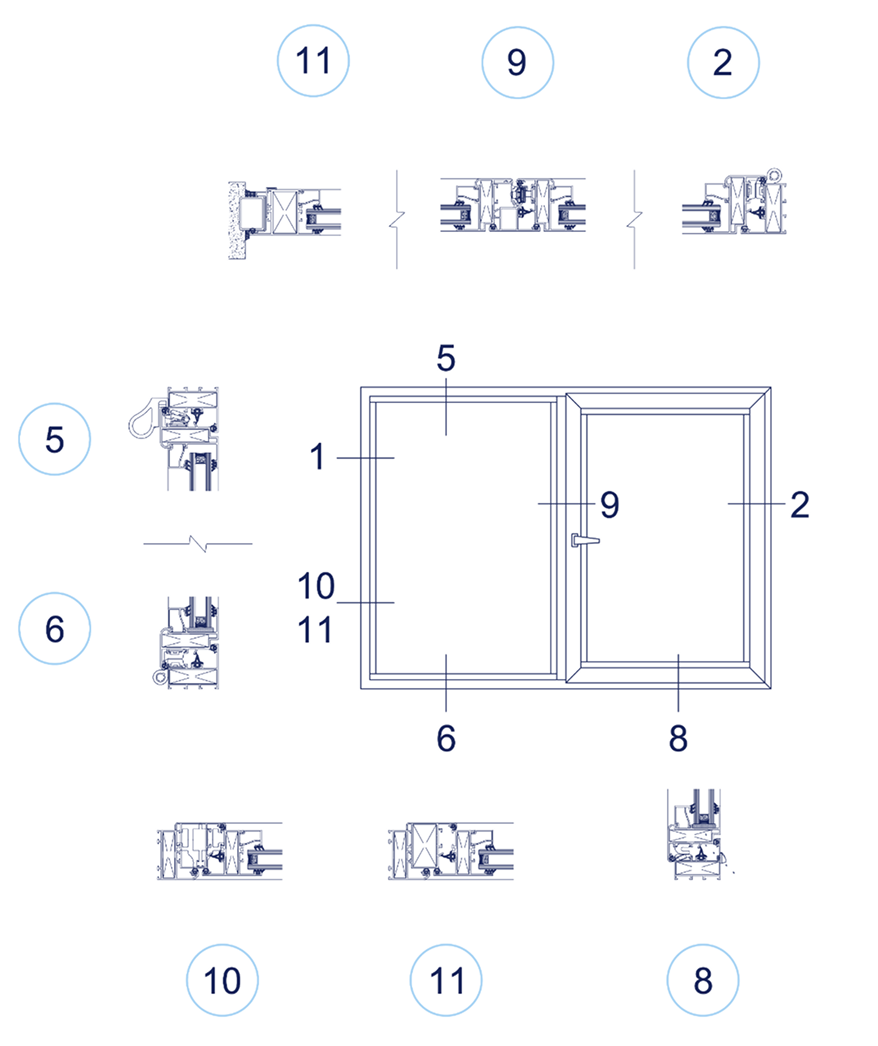

Window with a fixed panel

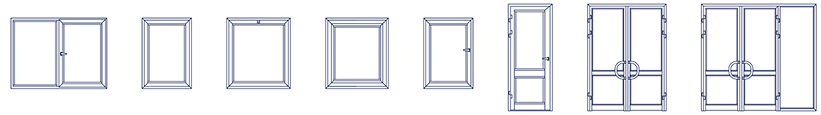

Application Options
- Inward Opening Sash
- Tilt and Turn Opening
- Double Sash Opening
- Outward Opening Sash
- Transom Opening
- Pivot Opening
Glass Specs & Configurations
Discover a range of glass types engineered to meet aesthetic, performance, and safety requirements—each tailored to enhance the design and functionality of your project.
Glass Types
Insulation & Energy Efficiency
Premium Finishes
Choose from our standard color selection or customize your project with any RAL color or wood grain finishes. Our durable, powder-coated aluminum ensures long-lasting performance, weather resistance, and a flawless aesthetic.
9016
White
9006
Aluminum
9005
Jet black
7021
Black gray
8017
Chocolate brown
9001
Cream
7006
Beige gray
7016
Anthracite
7040
Window gray
9403-205
Maple
9403-205
Golden pine
9403-205
Red mahogany
Powder-coated
Anodized
Custom RAL colors
Wood-grain
