SH110
The SH110 Guillotine System features an advanced vertical sliding mechanism engineered for seamless operation and architectural impact. Constructed from high-performance aluminum profiles with integrated thermal insulation, it delivers durability, energy efficiency, and a sleek, modern aesthetic—ideal for creating large, unobstructed openings in contemporary residential and commercial projects.
Get quote
Premium Features
Vertical sliding
Vertical sliding glass for ventilation and views.
Automated ease
Automatic movement at the push of a button.
UV defense
Blocks harmful UV rays to protect interiors.
All-weather sealing
Built to resist rain, snow, and the elements.
Classic grid design
Classic grid style for a traditional look.

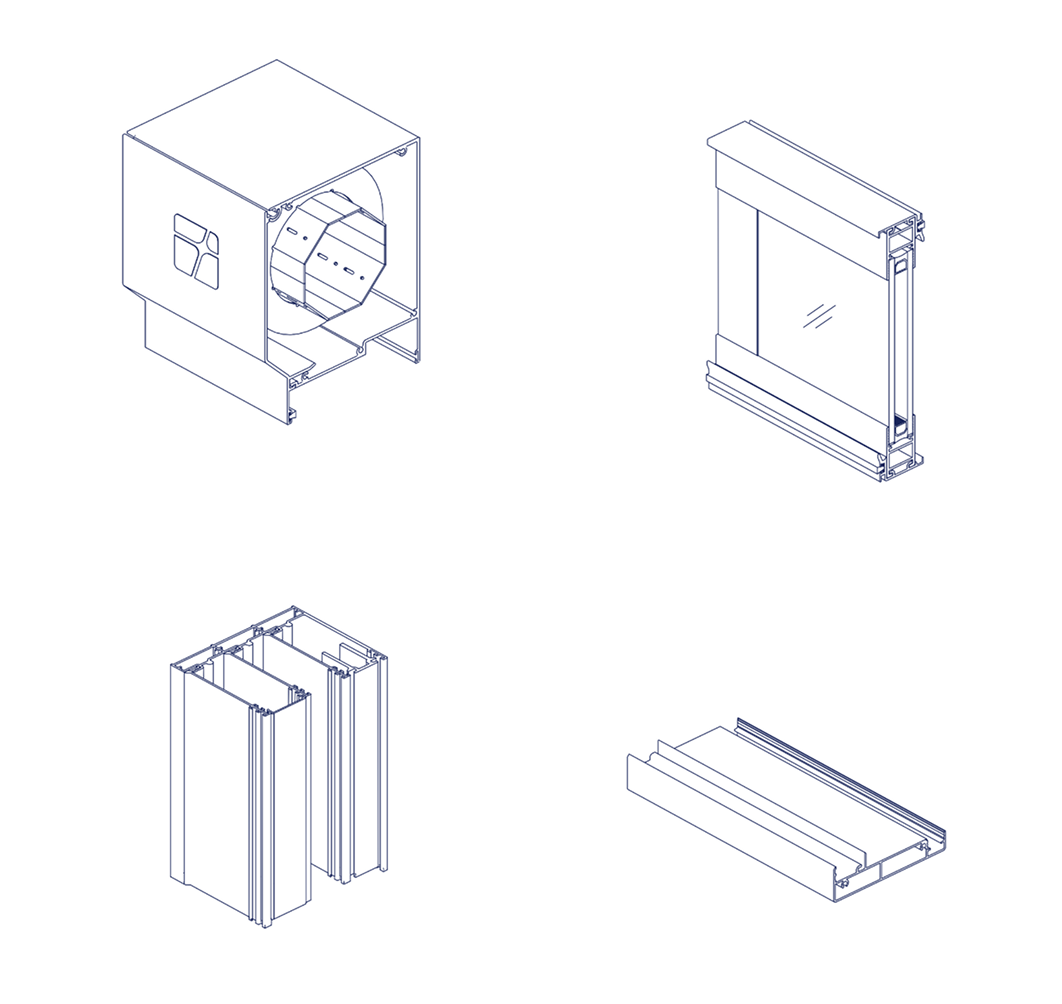

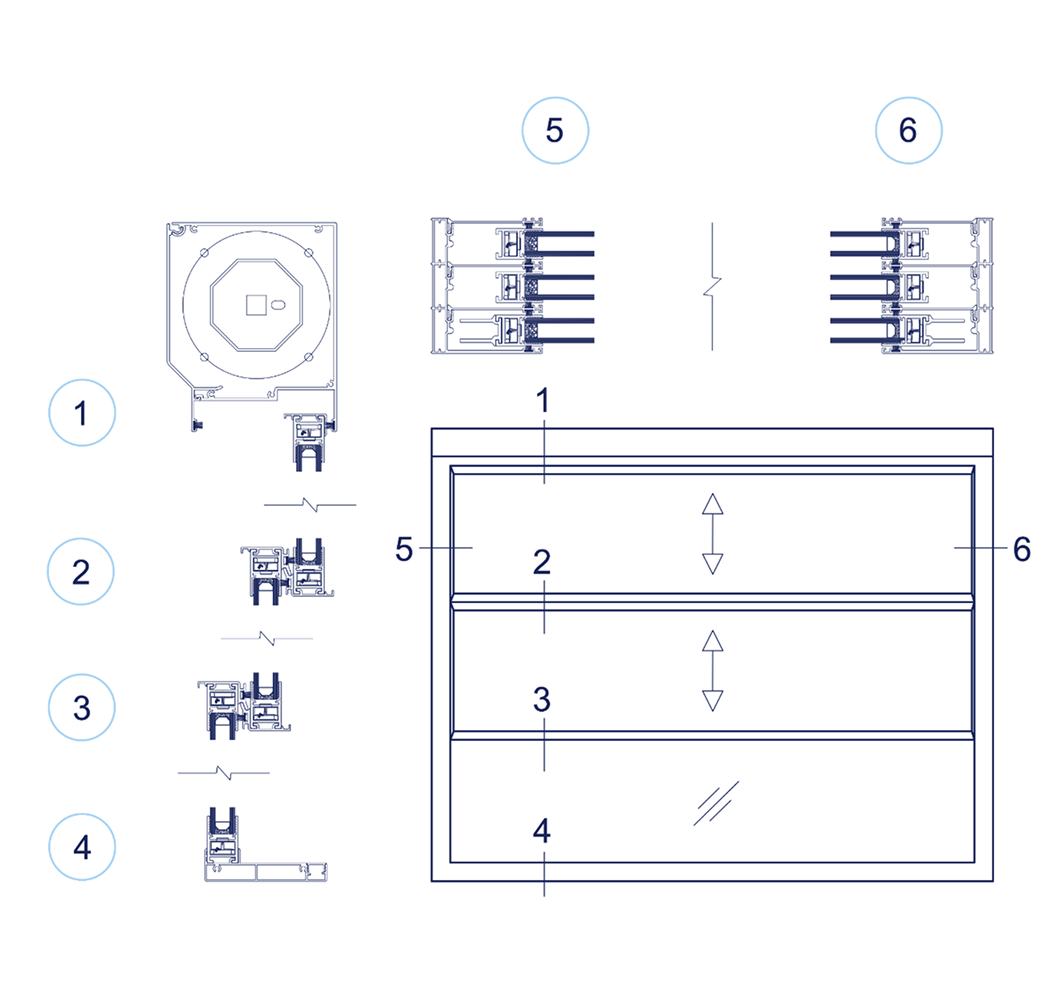

Inside the Frame
Explore the inner structure and key features of SH110.
Technical Specifications
Top Tube Profile width
5.28 inch
Profile Wall Thickness
0.09 - 0.05 inch
Max. Sash Weight
154.33 lbs
Top Tube Profile Height
6.69 inch
Glazing Thickness
0.32 - 0.79 inch
Max. Sash Number
4
Sash Profile Width
0.99 inch
Max. Sash Width
137.8 inch
Sash Profile Height
1.5 inch
Max. Sash Height
39.37 inch

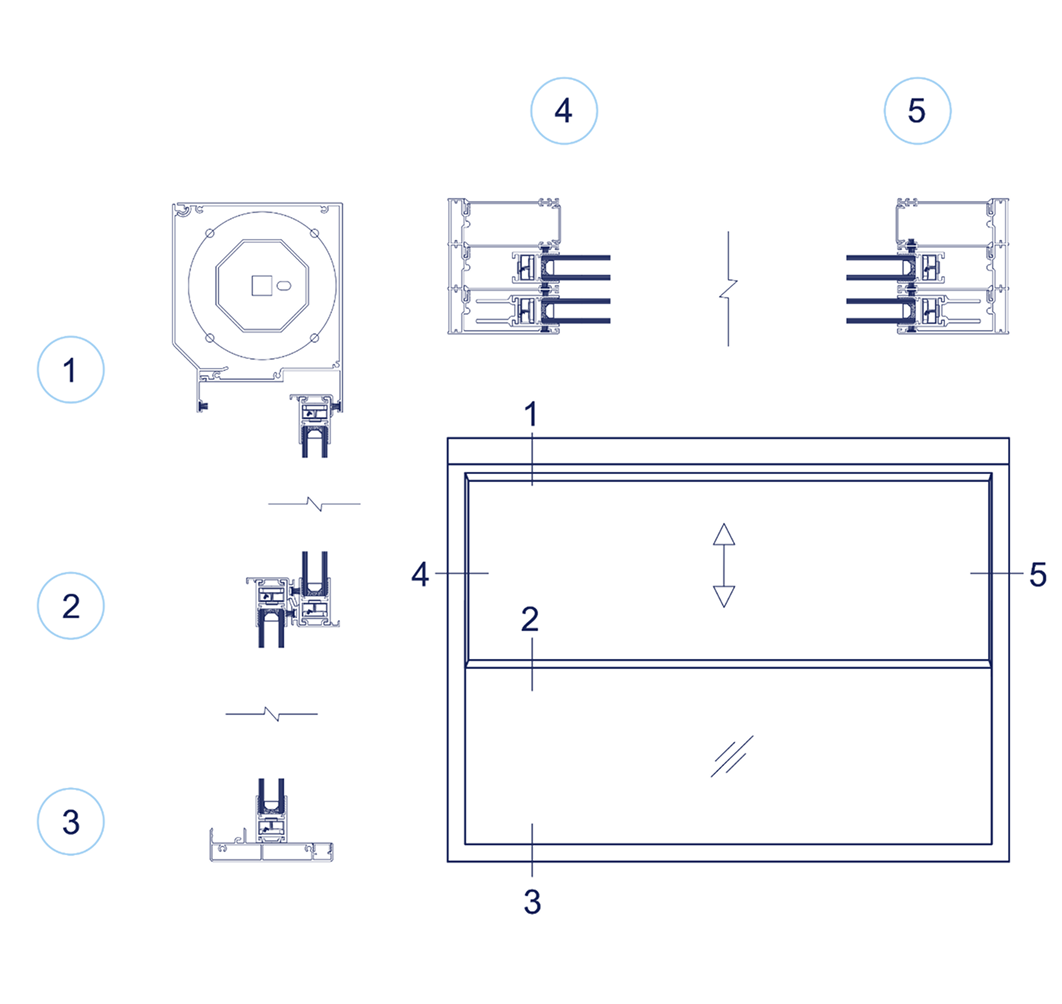

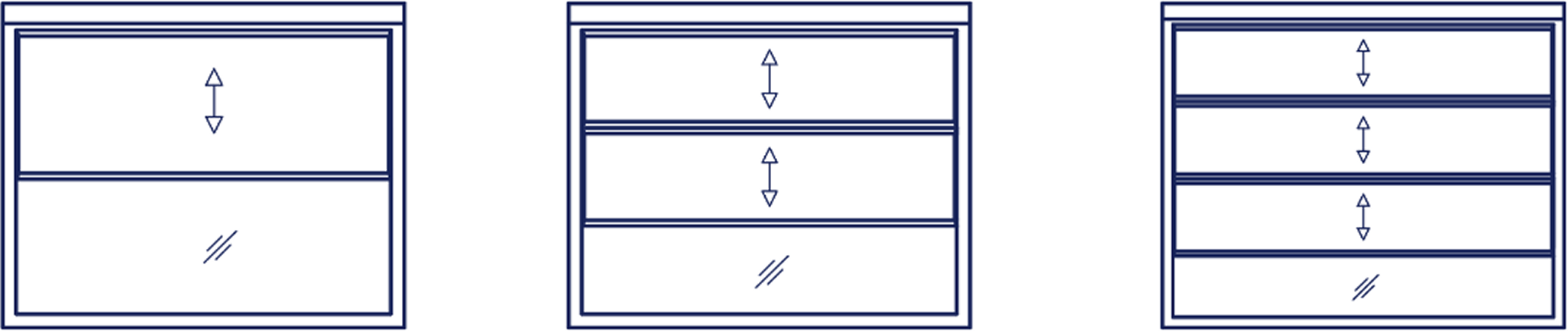

Two operable panels

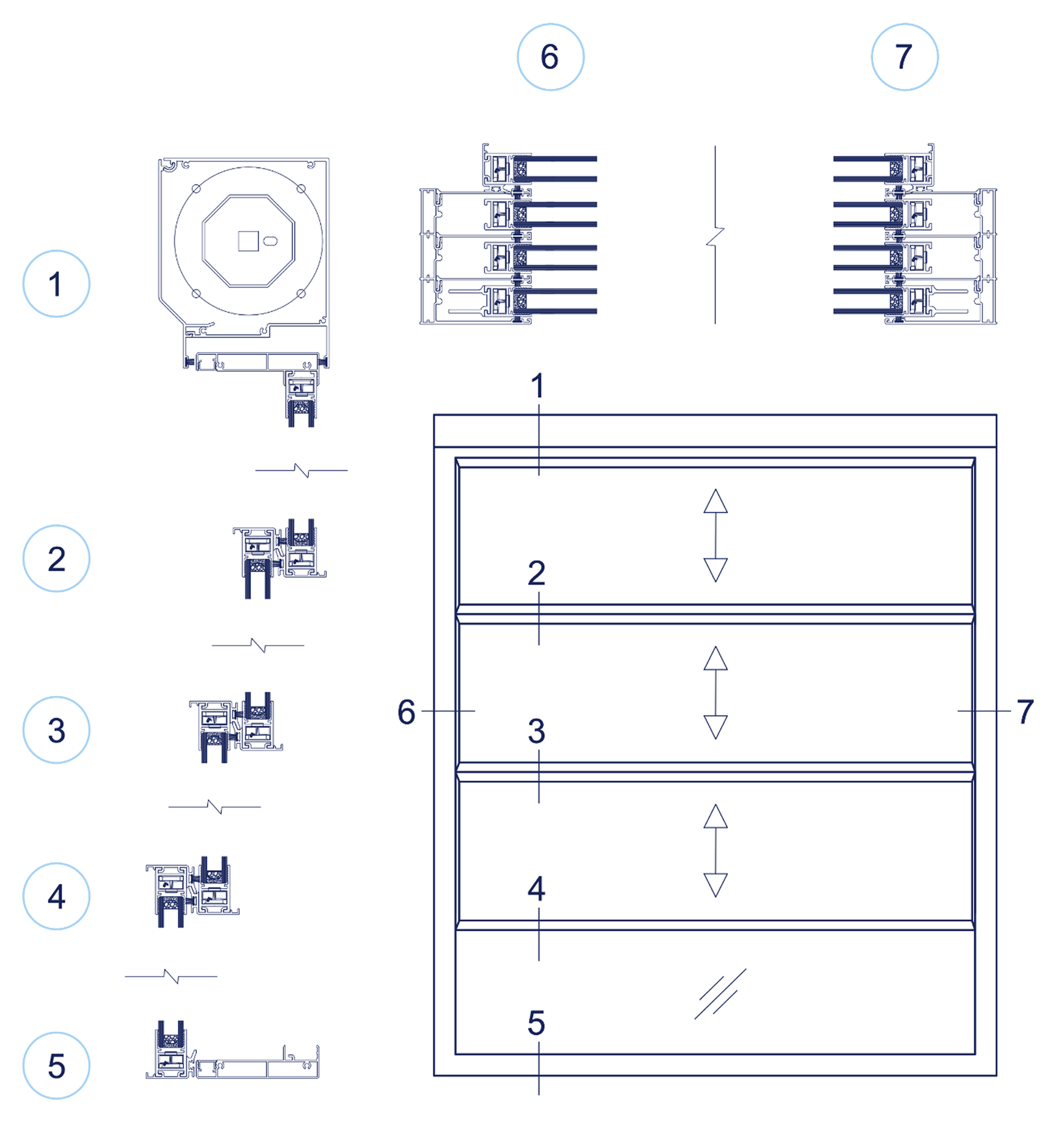

Three operable panels
One operable panel / One stationary
Center opening four operable panels
Application Options
- Top Handrail, Bottom Threshold System
- Without Top Handrail, Bottom Threshold System
- Top Handrail, Without Bottom Threshold System
- Without Top Handrail, Without Bottom Threshold System
- Belt Strap
- Chained Strap
Glass Specs & Configurations
Discover a range of glass types engineered to meet aesthetic, performance, and safety requirements—each tailored to enhance the design and functionality of your project.
Glass Types
Insulation & Energy Efficiency
Premium Finishes & Color Options
Choose from our standard color selection or customize your project with any RAL color or wood grain finishes. Our durable, powder-coated aluminum ensures long-lasting performance, weather resistance, and a flawless aesthetic.
9016
White
9006
Aluminum
9005
Jet black
7021
Black gray
8017
Chocolate brown
9001
Cream
7006
Beige gray
7016
Anthracite
7040
Window gray
9403-205
Maple
9403-205
Golden pine
9403-205
Red mahogany
Powder-coated
Anodized
Custom RAL colors
Wood-grain look
