FS50 / FS50ECO
The FS50 Curtain Wall System provides a sleek, high-performance façade solution tailored for modern architecture. Featuring slim profiles, structural strength, and advanced drainage and ventilation systems, it maximizes natural light while delivering superior thermal and acoustic insulation. Ideal for both low- and high-rise applications, the FS50 combines aesthetics, energy efficiency, and engineering precision for seamless building integration.
Get quote
Premium Features
Framed facade
Framed glass facade for modern exteriors.
Outdoor facade
Energy-efficient outer skin for buildings.
Optimized energy use
Efficient systems that reduce energy use.
All-weather sealing
Built to resist rain, snow, and the elements.
Storm-ready
Tested to perform in high-wind conditions.
Energy-smart insulation
Reduces heat loss for energy-efficient comfort.
Shock resistance
Engineered to absorb shock and resist breakage.
Inside the Frame
Explore the inner structure and key features of FS50.
Technical Specifications
| FS50 | FS50ECO | |
|---|---|---|
| Frame Width | 1.97 inch | 1.97 inch |
| Profile Wall Thickness | 0.06 - 0.1 inch | 0.06 - 0.08 inch |
| Mullion Profile Depth | 1.97 - 7.09 inch | 2.36 - 5.91 inch |
| Transom Profile Depth | 1.18 - 4.96 inch | 2.36 - 5.91 inch |
| Min. Glazing Thickness | 0.16 inch | 0.79 inch |
| Max. Glazing Thickness | 1.77 inch | 1.34 inch |
| Max. Sash Dimensions | - | - |
| Max. Sash Weight | 59.06 x 78.74 inch | 59.06 x 78.74 inch |
| Max. Sash Weight | 341.72 lbs | 341.72 lbs |
| Air Permeability | A4 - 600 Pa | A4 - 600 Pa |
| Water Tightness | RE 1200 Pa | RE 1200 Pa |
| Wind Resistance | 1200 Pa | 1200 Pa |
| Min. Thermal Insulation | Uf: 2,64 - 3,88 W/(m².K) | Uf: 3,45 W/(m².K) |
Single door

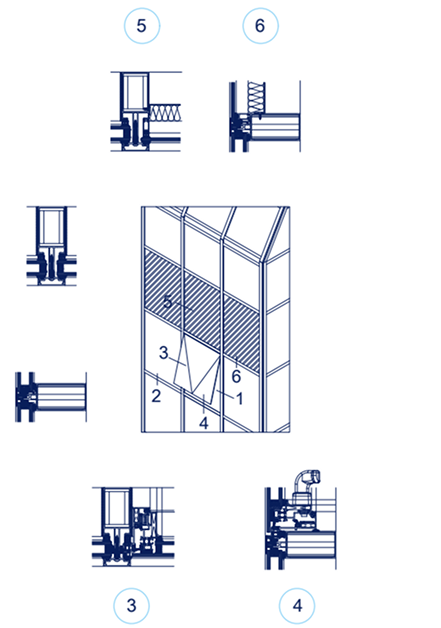

French door

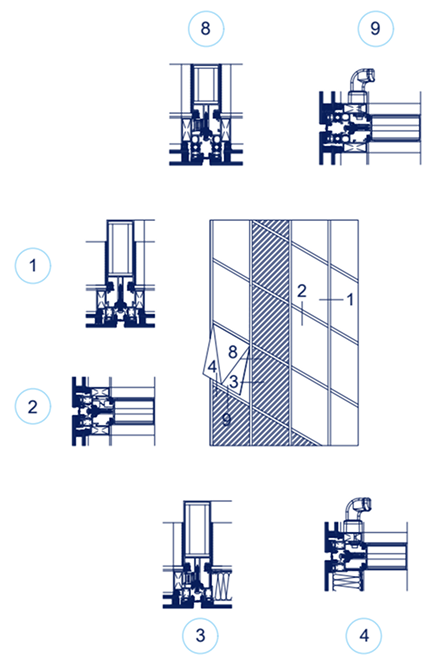

Window

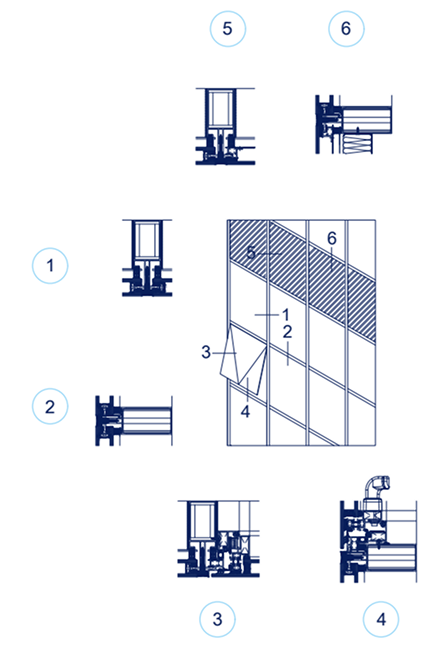

Window with a fixed panel
Application Options
- Outward Opening Hidden Transom Sash
- Covered Facade
- Stick Facade
- Half - Covered Facade
- Casette Stick Facade
Glass Specs & Configurations
Discover a range of glass types engineered to meet aesthetic, performance, and safety requirements—each tailored to enhance the design and functionality of your project.
Glass Types
Insulation & Energy Efficiency
Premium Finishes
Choose from our standard color selection or customize your project with any RAL color or wood grain finishes. Our durable, powder-coated aluminum ensures long-lasting performance, weather resistance, and a flawless aesthetic.
9016
White
9006
Aluminum
9005
Jet black
7021
Black gray
8017
Chocolate brown
9001
Cream
7006
Beige gray
7016
Anthracite
7040
Window gray
9403-205
Maple
9403-205
Golden pine
9403-205
Red mahogany
Powder-coated
Anodized
Custom RAL colors
Wood-grain
