FD60T / FD70T

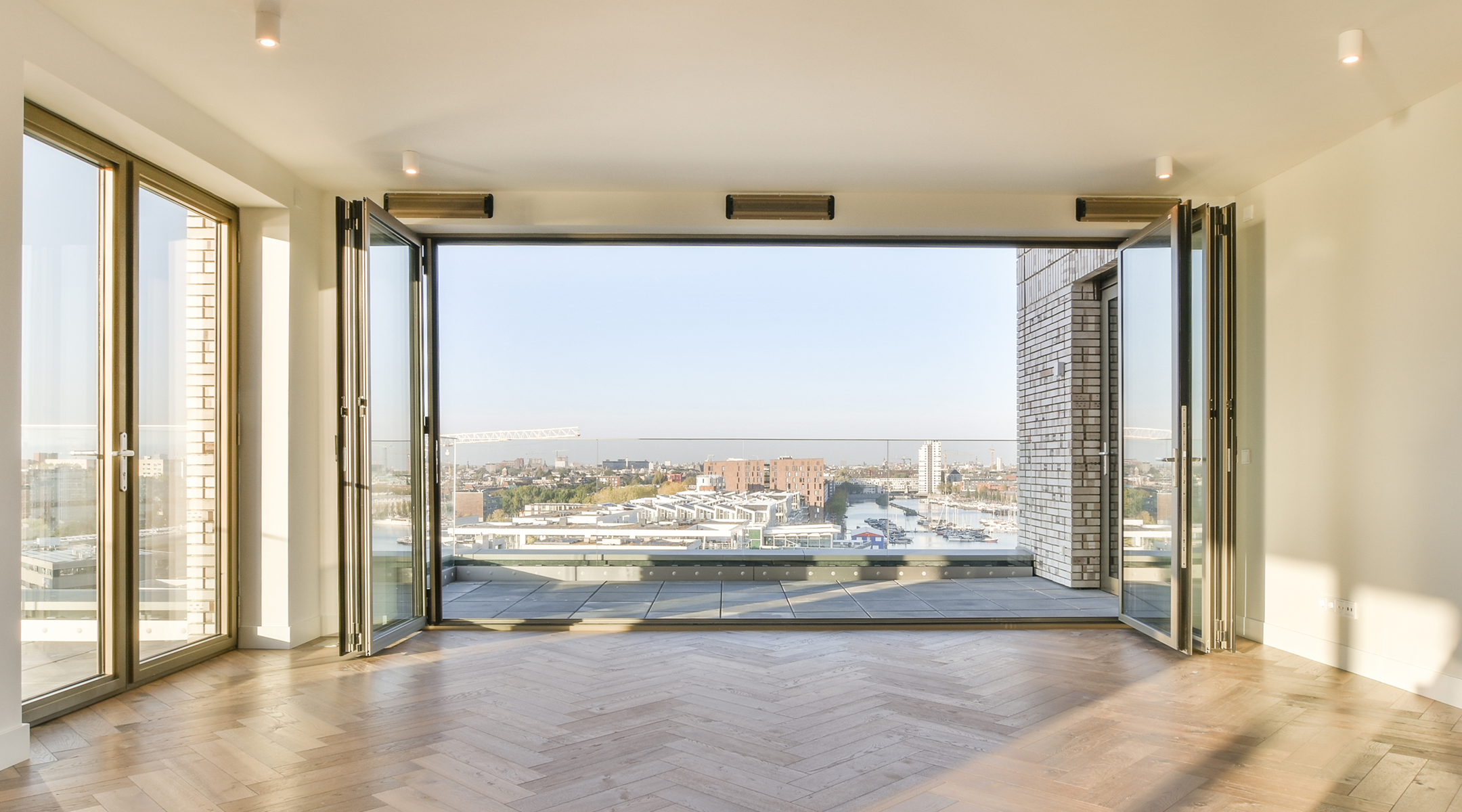

The FD60T / FD70T Folding Door System is designed to deliver expansive openings with maximum flexibility and minimal visual disruption. Engineered with high-strength aluminum profiles, it ensures smooth folding operation, durability, and energy efficiency. Ideal for residential and commercial applications, the FD60T enhances natural light, ventilation, and spatial continuity while maintaining clean, modern aesthetics.
Get quote
Premium Features
Wide-open living
Panels fold away to create wide, open spaces.
Thermal barrier
Enhanced insulation with reduced heat transfer.
Storm-ready
Tested to perform in high-wind conditions.
Noise reduction
Reduces noise for a quieter interior.
All-weather sealing
Built to resist rain, snow, and the elements.
Secure locking
Safety and peace of mind.
Inside the Frame
Explore the inner structure and key features of FD60T.
Technical Specifications
| FD60T | FD70T | |
|---|---|---|
| Frame Depth | 2.36 inch | 3.03 inch |
| Sash Depth | 2.36 inch | 3.03 inch |
| Thermal Break | 0.59 - 0.79 inch | 0.79 - 1.26 inch |
| Profile Wall Thickness | 0.06 - 0.1 inch | 0.07 inch |
| Min. Glazing Thickness | 0.16 inch | 0.79 inch |
| Max. Glazing Thickness | 1.42 inch | 1.97 inch |
| Max. Sash Dimensions | 23.62 x 35.43 inch | 14 x 28 inch |
| Max. Sash Dimensions | 35.43 x 98.43 inch | 137.8 inch |
| Max. Sash Weigh | t176.37 lbs | 264.55 lbs |
| Min. Thermal Insulation | Uf: 3,27 W/(m².K) | Uf: 2,76 W/(m².K) |

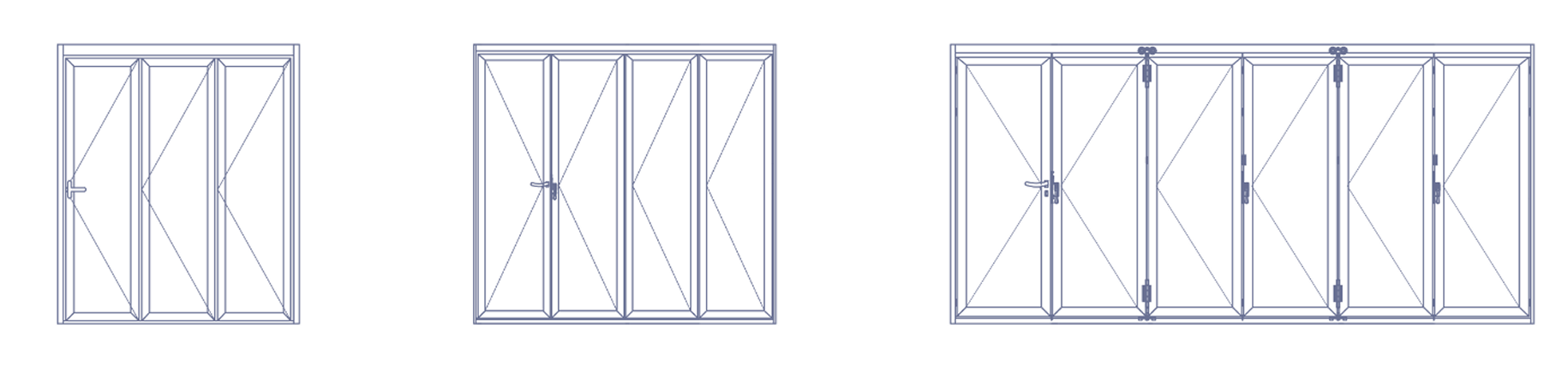

Three operable panels

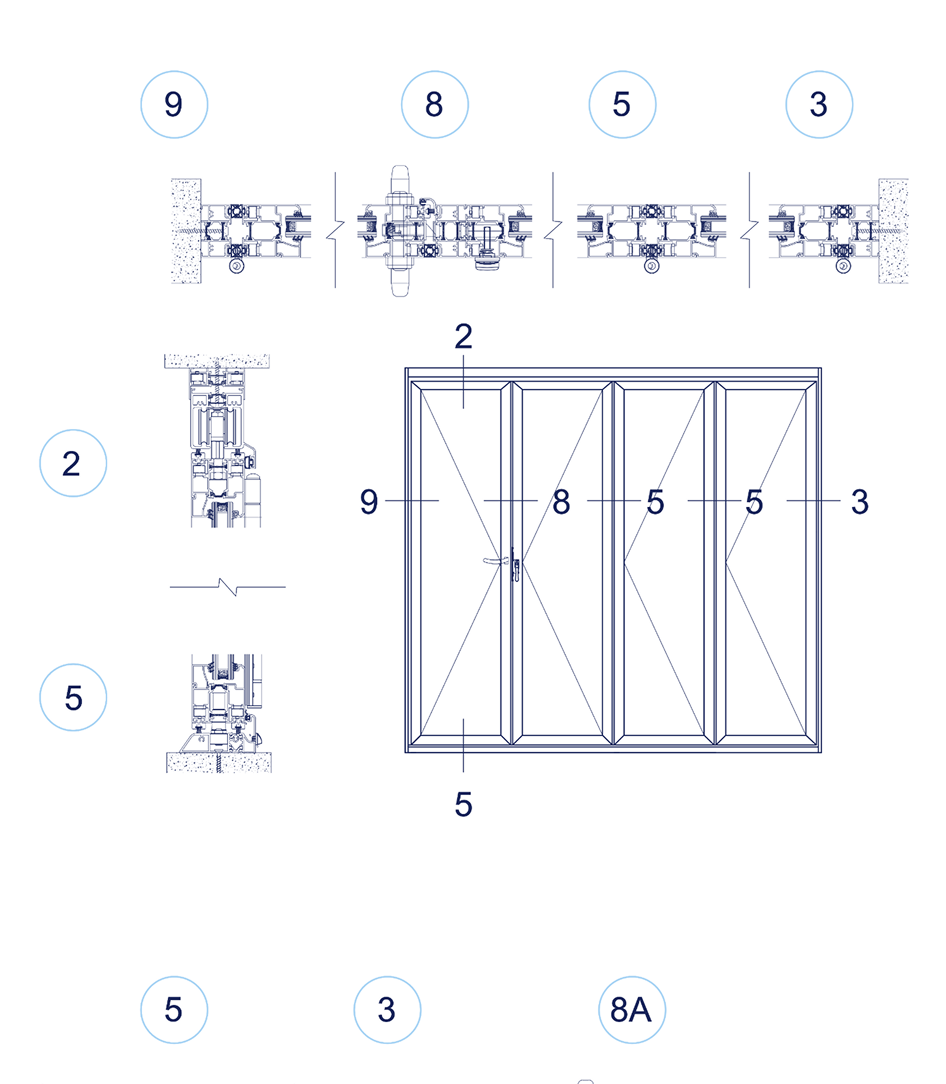

Four operable panels

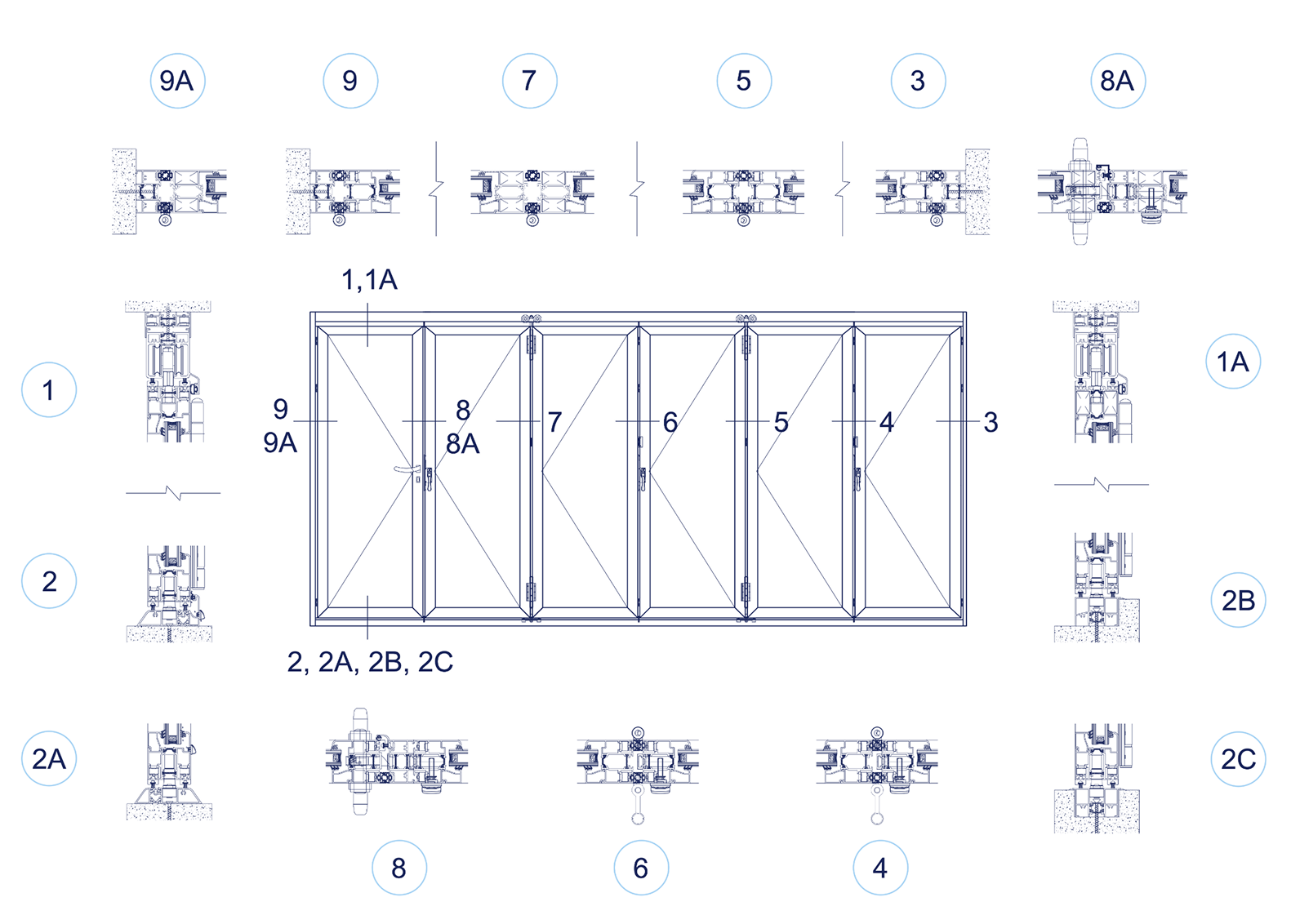

Six operable panels
Application Options
FD60T
- 3, 5, 7 & 9 Sash Bi-folding Door
- 3+3, 5+5, 7+7 Sash Bi-folding Door
- Rotation Bi-folding Door
- Box Corner J. 90° Inward - Outward Opening
- Box Corner J. 45° Inward - Outward Opening
FD70T
- 3, 5, 7 & 9 Sash Bi-folding Door
- 3+3, 5+5, 7+7 Sash Bi-folding Door
- Rotation Bi-folding Door
- Box Corner J. 90° Inward - Outward Opening
- Box Corner J. 45° Inward - Outward Opening
Glass Specs & Configurations
Discover a range of glass types engineered to meet aesthetic, performance, and safety requirements—each tailored to enhance the design and functionality of your project.
Glass Types
Insulation & Energy Efficiency
Premium Finishes
Choose from our standard color selection or customize your project with any RAL color or wood grain finishes. Our durable, powder-coated aluminum ensures long-lasting performance, weather resistance, and a flawless aesthetic.
9016
White
9006
Aluminum
9005
Jet black
7021
Black gray
8017
Chocolate brown
9001
Cream
7006
Beige gray
7016
Anthracite
7040
Window gray
9403-205
Maple
9403-205
Golden pine
9403-205
Red mahogany
Powder-coated
Anodized
Custom RAL colors
Wood-grain
