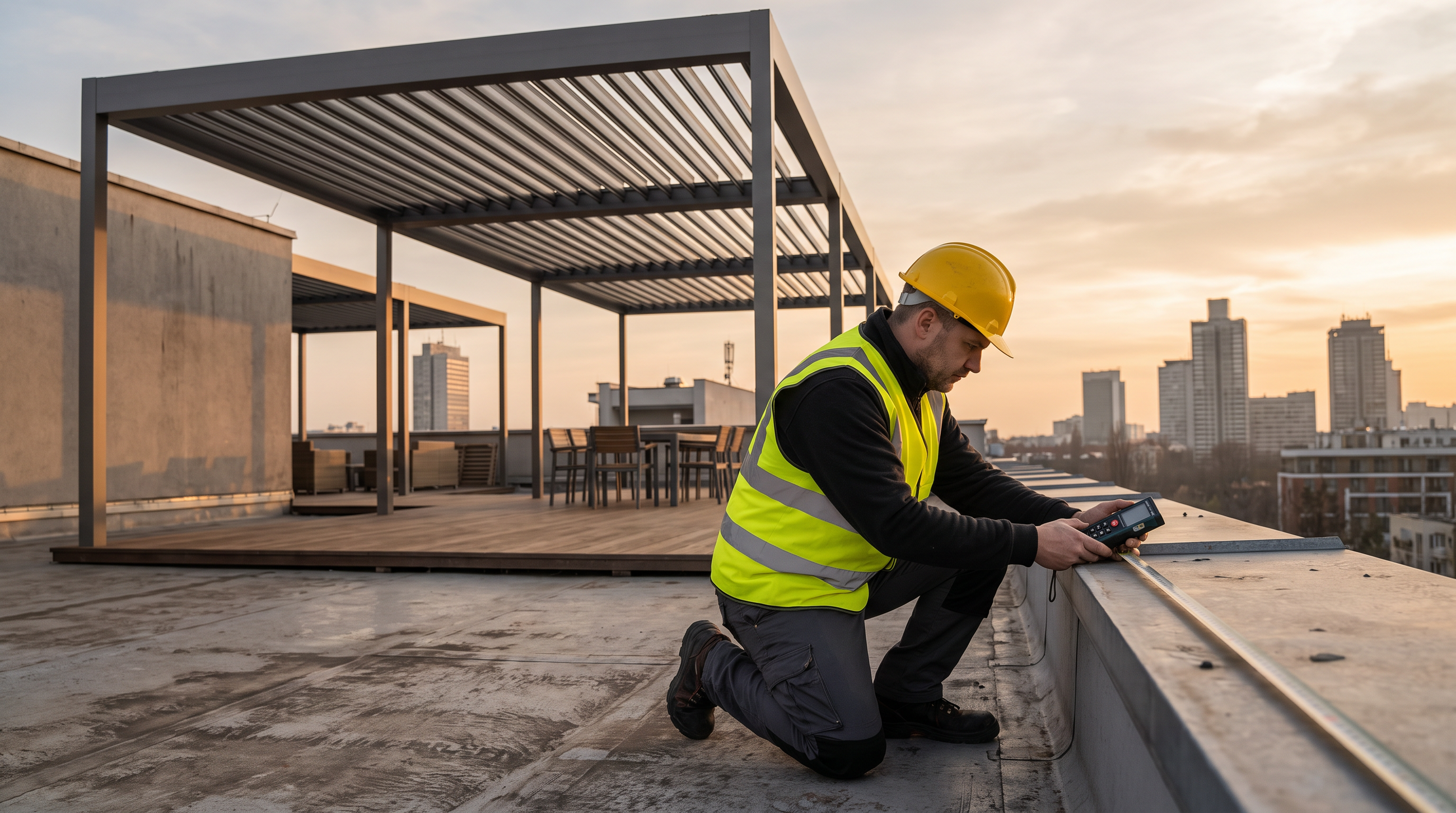

A Louvered Roof Installation Doesn't Start on the Roof. It Starts With a Tape Measure.
Introduction
A louvered roof installation lives or dies before fabrication — in the field survey. Here's what our crew checks on the roof, and why it saves the whole build.
The first time I watched a beautiful set of drawings meet an ugly real building, it was a Tuesday, and the parapet was an inch and a half out of level over forty feet.
Nobody drew it that way. The architect didn't miss anything. The building just settled the way buildings do over thirty years, and an inch and a half doesn't matter — until you're setting a motorized aluminum louvered roof on top of it and every blade has to close tight against the next one.
That inch is where a louvered roof installation actually begins. Not on install day. Weeks earlier, with somebody on the roof and a tape measure, checking whether the building agrees with the paper.
Why the Drawing Is Never the Whole Story
Here's the thing nobody tells you when you spec an outdoor structure: the drawing is a promise about a building that doesn't exist yet.
It's right. It's just not finished being right until someone stands on the actual roof and measures the actual steel.
Existing buildings move. Curbs get poured a hair off. A rooftop that reads as a clean rectangle on the plan turns out to slope for drainage, or the structural column the whole span was going to land on sits two inches from where the record drawings put it. None of that is anyone's fault. It's just what thirty years of weather and a dozen past contractors leave behind.
So before we cut a single beam in the shop, we send a person to the site to measure what's really there. We call it the field survey. On a good day it's boring. On a bad day it's the most valuable afternoon in the whole job.
What Does a Louvered Roof Site Survey Actually Check?
A field survey isn't one number. It's the crew reconciling three things that all have to line up, because a louvered roof is a system, not a lid you drop on.
The as-built conditions. We measure the real openings, the real parapet heights, the real column spacing — then lay our shop drawings over the top and hunt for the gaps. That out-of-level parapet? Better to find it with a tape than with a crane holding a beam.
The structural connection. The blades and frame are only as good as what they bolt to. We confirm the existing structure can carry the loads we design for — because our systems are engineered for 164 MPH wind and 85 PSF of snow, and none of that means anything if the anchor lands in the wrong place.
The water path. A louvered roof's real job is shedding a downpour, and water doesn't read drawings either. We check where the roof meets the building line, where it drains, and whether the slope we're counting on is actually there.
Miss any one of those and you don't find out in the shop. You find out on install day, with a crew standing around a beam that doesn't fit and a restaurant owner asking why the opening date just moved.
Why Single-Source Means the Person Who Measures Talks to the Person Who Cuts
This is the part I'm actually proud of, and it's the least glamorous part of the whole operation.
When the same company designs, fabricates, and installs — the way we do, all under one 50,000-square-foot roof — the surveyor who found that inch-and-a-half doesn't file a report into a void. He walks over to the shop floor and tells the fabricator directly. The frame gets built to the building that exists, not the building on the plan.
I've been on the other kind of job. Three vendors, one roof, and a survey number that got lost in an email chain between the designer who never saw the site and the crew who never saw the drawing. The seam where their work met is exactly where the water got in. Nobody owned it, so nobody fixed it — until it was our phone that rang.
Single-source isn't a sales word to us. It's the reason a measurement taken on a windy roof in the morning can change a cut on the shop floor that afternoon. One team holds the whole thing, drawing to install, so a rooftop restaurant like Del Frisco's or a venue like Dos Caminos gets a roof that fits the first time — because the number never had to survive a handoff.
That's how you get to 750-plus structures and 98% of clients happy. Not with a better brochure. With an afternoon on the roof, before anything gets built.
The Part Clients Never See — And Shouldn't Have To
Here's the quiet truth about a louvered roof installation done right: the client never hears about the field survey at all.
They don't hear about the parapet, or the column two inches off, or the fabricator who re-cut a frame because a guy on a lift caught the problem early. They just get a roof that closes tight when the storm rolls in, opens to the sky when it clears, and never gives them a reason to think about it again.
Good engineering is invisible. The survey is where it gets made invisible — where all the ugly reality of a real building gets absorbed before it ever reaches the person who signed off on the drawings.
So if you're specifying an outdoor structure and a fabricator tells you they'll build straight from your plans, no site visit needed — that's not confidence. That's the leak, three years early.
Ask who's coming to measure the roof. Ask what happens to that number after they do. The answer tells you almost everything about how the finished structure is going to fit.
Specifying a rooftop or patio structure and want to see how the survey-to-fabrication handoff works on a real project? Ask us to walk you through one — the boring afternoon that saves the install.
